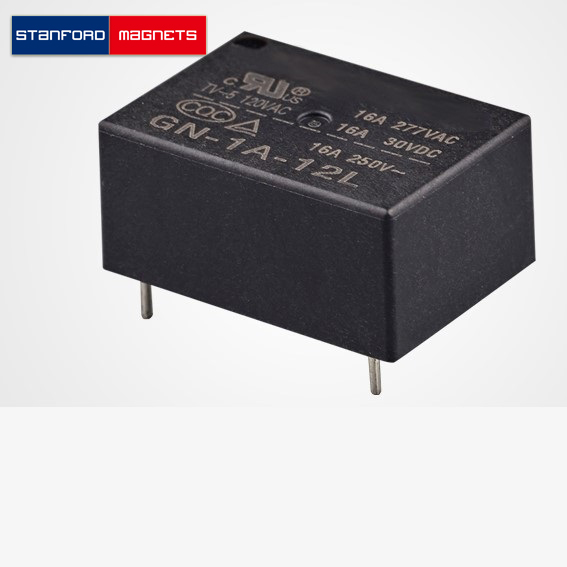

SMON3056 Power Relay GN-1A-12L

Model: GN-1A-12L

Certification: CQC, TUV, UL

Dimension: 23×16.1×10.5 mm

Contact Material: Silver alloy

Environment temperature: -40 to 105℃

INQUIRY Can't Find The Size

Follow Us On


Power Relay GN-1A-12L Introduction

Power Relay GN-1A-12L has three subsystems: contact system, magnetic system, and mechanical components. The magnetic system includes the coil, the core, the yoke, the armature, and the return spring.

Power relays open or close a circuit by using an electromagnetic coil for seamless power flow. These cost-efficient relays are manufactured with an armature, spring, and one or several contacts. If the relay is meant to be normally open when power is applied the electromagnet attracts the armature.


Power Relay GN-1A-12L Features

  • Small size but large load, which up to 16A.
  • Low power consumption. Available for 200mW coil power consumption.

Power Relay GN-1A-12L Specification

Contact Load 16A 250VAC
Coil Voltage (3-48) VDC
Contact Resistance ≤100mΩ (1A 6VDC)
Temperature range -40 to 105℃
Terminal PCB


Power Relay GN-1A-12L Applications

Power Relay GN-1A-12L is used in audio amplification and telephone systems. It is also applied in automotive electronics and computer systems.
