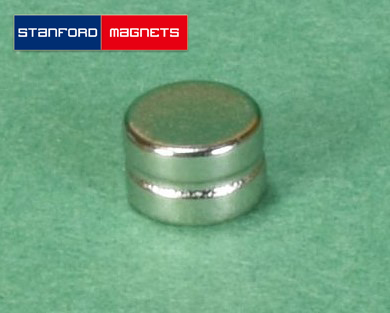

SMON3066 Stepped Disc Neodymium Magnets

Product ID SMON3066
Material NdFeB, Grade N42
Shape Stepped Disc
Dimensions 5/32” dia. x 1/10” thick
Tolerances ±0.004″ x ±0.004″
Weight 0.0213 oz. (0.603 g)
Pull Force, Case 1 0.92 lbs
Pull Force, Case 2 1.41 lbs
Plating/Coating Ni-Cu-Ni
Magnetization Direction Axial
Max. Operating Temp 80℃
Brmax 13,200 Gauss
BHmax 42 MGOe
INQUIRY Can't Find The Size

Follow Us On


Description

Stepped Disc Neodymium Magnets Introduction

Stepped Disc Neodymium Magnets have a tiny groove around the edge. They are widely used in 3D glasses holder, the art display industry, mining, engineering, lighting, etc.

Download a PDF Specification Sheet of Stepped Disc Neodymium Magnets

Download a PDF Specification Sheet of Custom Stepped Magnets

Stepped Disc Neodymium Magnets Applications

Stepped Disc Neodymium Magnets are specifically designed for applications where a groove is needed, like eyeglasses or molding small parts.

Dimension: 5/32” dia. x 1/10” thick
