SMON3152 Encased Ceramic Magnets (Al Case) (Discontinued)

Product ID: SMON3152

{{el.prop}}: {{el.options}}

DESCRIPTION

TECHNICAL

Encased Ceramic Magnets (Al Case) Introduction

Encased Ceramic Magnets (Al Case) feature a ceramic core encased in a protective housing, ensuring both durability and enhanced performance. With strong magnetic properties, they securely attract and hold objects in place. The encased design shields the ceramic core from external damage, making these magnets resistant to chipping, cracking, and corrosion.

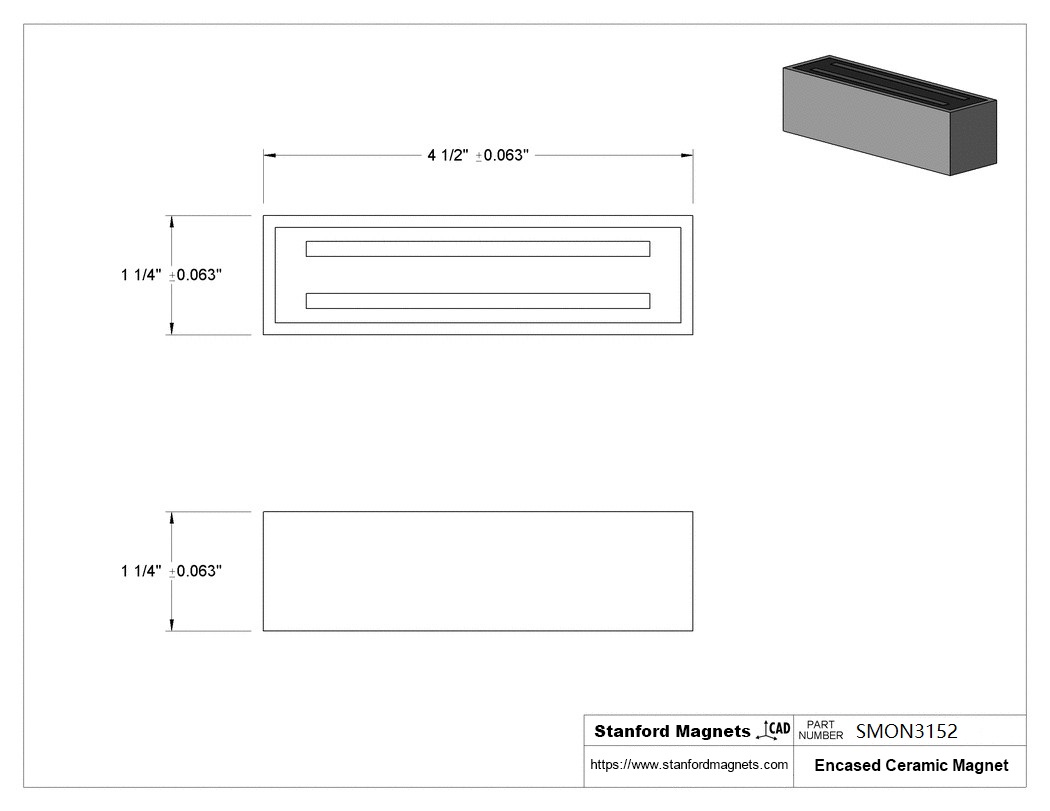

Encased Ceramic Magnets (Al Case) Specification

Thick.	Wd.	Lg.	Max. Pull, lbs.	Sets of Poles
1 1/4"	1 1/4"	4 1/2"	75	2
1 1/4"	1 1/4"	4 1/2"	110	2
1 1/4"	1 7/8"	4 1/2"	150	2
1 1/4"	2 1/2"	4 1/2"	230	3

Encased Ceramic Magnets (Al Case) Applications

Encased Ceramic Magnets (Al Case) are ideal for various applications, from crafts and hobbies to industrial settings.

Keywords: Encased Ceramic Magnets (Al Case) Related products: Encased Ceramic Magnets (Al Case) (Zinc-Plated Steel Case) Encased Ceramic Magnet (Al Case) Encased Ceramic Magnet (Steel Case)

Download a PDF Specification Sheet
