Normal Magnetic Liquid Trap Introduction
Normal Magnetic Liquid Trap, also named Magnetic Liquid Filter, is designed for removing iron fillings from liquid or semi-liquid materials with different viscosity, to keep the purity of materials and protect the equipment. It features easy installation, separation, and cleaning through ferrule, bolt plate, flange or uneven head, etc. The ideal designed magnetic configuration ensures maximum magnetic effect without liquid flow impediment.
Normal Magnetic Liquid Trap Specification

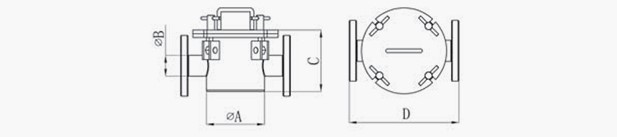

Figure 1-1 Normal Magnetic Liquid Trap
| MODEL NO. |
Dimension(mm) |
No. of rods |
Weight(Kg) |
| ΦA |
ΦB |
C |
D |
| SWFL150/25 |
159 |
32 |
167 |
300 |
5 |
12 |
| SWFL150/32 |
159 |
38 |
167 |
300 |
5 |
17 |
| SWFL150/40 |
159 |
45 |
167 |
300 |
5 |
18 |
| SWFL150/50 |
159 |
57 |
167 |
300 |
5 |
21 |
| SWFL150/65 |
159 |
76 |
167 |
300 |
5 |
23 |
| SWFL200/50 |
200 |
57 |
206 |
350 |
7 |
27 |
| SWFL200/65 |
200 |
76 |
206 |
350 |
7 |
29 |
| SWFL200/80 |
200 |
89 |
206 |
350 |
7 |
30 |
| SWFL200/100 |
200 |
108 |
228 |
350 |
7 |
33 |
Please contact us for more specifications.
Normal Magnetic Liquid Trap Applications
Normal Magnetic Liquid Trap is commonly used in various industries to effectively separate and remove magnetic particles from liquids. It can be used in wastewater treatment plants, food processing industries, chemical manufacturing, and mining operations to remove impurities such as metal shavings, rust, or other magnetic contaminants from the liquid.
