SMON3180 Magnetic Liquid Trap with Clamp Connection (Series 3)

Features:

  • Easy installation, separation and cleaning
  • Ideal designed magnetic configuration

Standard Operating Temperature: ≤80℃

(As requirements, Max. Operating Temperature can reach 350℃)

Max. Magnetic Strength: 8000GS (Normal), 13000GS (Easy-cleaning)

Pipeline Material: 304 or 316L Stainless Steel

INQUIRY Can't Find The Size

Follow Us On


Description

Magnetic Liquid Trap with Clamp Connection Introduction

Magnetic Liquid Trap with Clamp Connection is designed for removing iron fillings from liquid or semi-liquid materials with different viscosity, to keep materials purity and protect the equipment. It features a quick interface connector. It uses a rubber washer connected with a special shape of trap entry for good tightness, which saves installation time and costs. The ideal designed magnetic configuration ensures maximum magnetic effect without liquid flow impediment.



Magnetic Liquid Trap with Clamp Connection Specification

Magnetic Liquid Trap with Clamp Connection Series 3

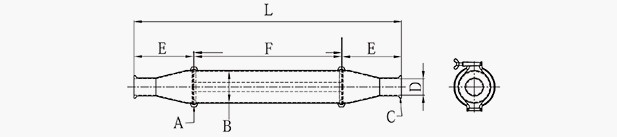

Figure 1-1 Magnetic Liquid Trap with Clamp Connection Series 3



MODEL NO Dimension(mm)
A ΦB C ΦD E F L
SW-E10 2S 47.8 1S 23 60 226 350
SW-E10-1 2S 47.8 1S 23 55 226 340
SW-E15 2S 47.8 1.5S 35.7 60 226 350
SW-E20 2.5S 59.5 2S 47.8 110 226 450

Magnetic Liquid Trap with Clamp Connection Series 3

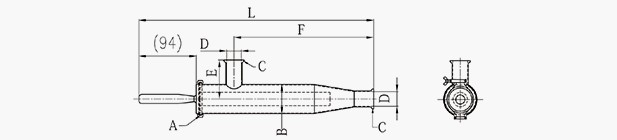

Figure 1-2 Magnetic Liquid Trap with Clamp Connection Series 3

MODEL NO Dimension(mm)
A ΦB C ΦD E F L
SW-E10 2S 47.8 1S 23 55 200 (359)
SW-E15 2S 47.8 1.5S 35.7 70 200 (359)
SW-E20 2.5S 59.5 2S 47.8 82 250 (416)



Please contact us for more specifications.



Magnetic Liquid Trap with Clamp Connection Applications

Magnetic Liquid Trap with Clamp Connection is commonly used in filtration systems to remove magnetic and non-magnetic contaminants from liquids.
