Normal Magnetic Drawer Introduction

Normal Magnetic Drawer is designed for removing iron fillings from dry powder, strip, or graininess materials such as sugar, grain, tea, etc. to keep materials purity and protect the equipment. A square or round flange of entry is available according to each customer’s requirement for easy installation.

Normal Magnetic Drawer Specification

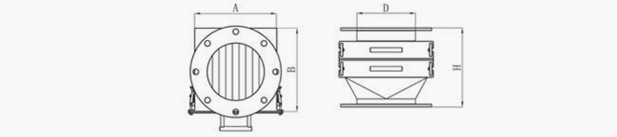

Figure 1-1 Normal Magnetic Drawer SWd-NR

MODEL NO	Dimension(mm)				Weight(Kg)
MODEL NO	D	H	A	B	Weight(Kg)
SWd-NR-150	159	286	208	205	20
SWd-NR-200	219	286	258	255	28
SWd-NR-250	273	286	308	305	33
SWd-NR-300	325	286	358	355	43
SWs-NR-150	159	216	208	205	16
SWs-NR-200	219	216	258	255	20
SWs-NR-250	273	216	308	305	24
SWs-NR-300	325	216	358	355	31

Please Contact us for more specifications.

Normal Magnetic Drawer Applications

Normal Magnetic Drawer is widely used in fields of ceramics, chemicals, pharmacy, food, plastic, rubber, dyestuff, mining, and environmental protection. It is designed for removing iron fillings from dry powder, strip, or graininess materials such as sugar, grain, tea, etc. Related products: Normal Magnetic Liquid Trap Easy-cleaning Magnetic Drawer Rotary Magnetic Separators
