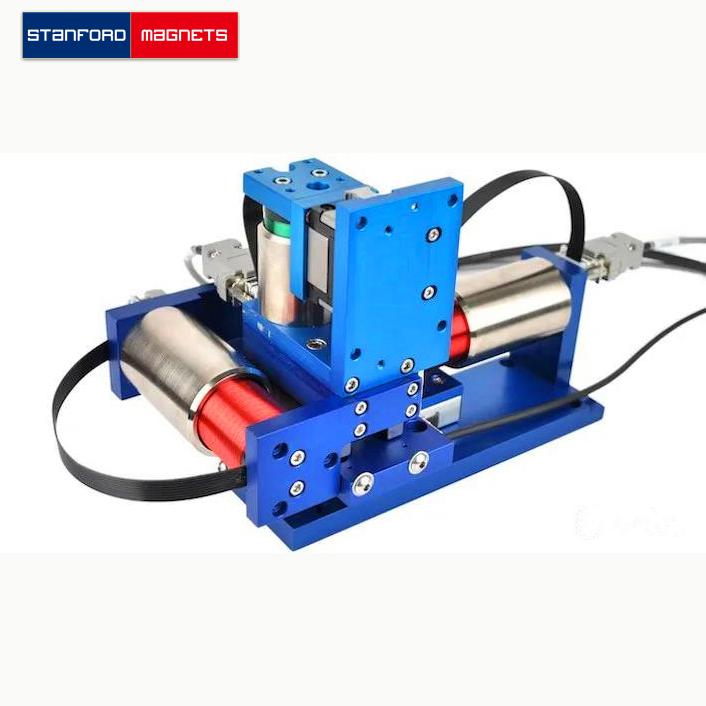

SMON6152 Magnetic Levitation Voice Coil Motor TMPT-VC-0895-045-000-C

Magnetic Levitation Voice Coil Motor Introduction

Magnetic Levitation Voice Coil Motor boasts a lightweight design, rapid response, high-speed operation, and exceptional acceleration capabilities. Constructed with high-quality magnetic steel and carefully selected materials, it delivers stable thrust output and superior thrust performance. The VCM platform is crafted from aerospace-grade aluminum, ensuring exceptional rigidity and durability. This cylindrical voice coil motor achieves a peak thrust of up to 895N, a continuous thrust of 265.2N, and a maximum stroke of 45mm. The stroke frequency can be customized to meet specific customer needs, and with an optimized encoder and rail system, the repeatability accuracy reaches up to 0.5μm.

Related products:

SMON6140 Magnetic Levitation Voice Coil Motor TMPT-VC-0050-025-000-C

SMON6141 Magnetic Levitation Voice Coil Motor TMPT-VC-0070-015-000-C

SMON6145 Magnetic Levitation Voice Coil Motor TMPT-VC-0250-010-000-C

Magnetic Levitation Voice Coil Motor Specification

Magnetic Levitation Voice Coil Motor Applications

• Precision Positioning Systems:

Designed for optical applications such as autofocus mechanisms in cameras and microscopes, delivering rapid response and high precision for accurate adjustments.

• High-Speed Actuators:

Ideal for robotics and automated systems that require fast, high-acceleration motion for applications like assembly, part handling, and precision movements.

• Medical Equipment:

Perfect for robotic surgical systems, ensuring smooth and precise motion for surgical instruments. Also used in hearing aids and therapeutic devices that require small, highly accurate movements.

• Aerospace & Satellite Applications:

Utilized in satellite positioning systems and aerospace components, providing high thrust and stability for the precise alignment of satellite parts and equipment.

FAQs

Q1: What is a Magnetic Levitation Voice Coil Motor?

A Magnetic Levitation Voice Coil Motor (VCM) is a high-performance motion system that leverages magnetic levitation to eliminate direct contact between moving components, significantly reducing friction and wear. This advanced technology enables fast response, high-speed operation, and exceptional acceleration, making it ideal for precision applications requiring smooth and accurate motion control.

Q2: What are the benefits of using a Magnetic Levitation Voice Coil Motor?

• Minimal Friction & Wear: Magnetic levitation eliminates physical contact, resulting in lower friction, enhanced efficiency, and an extended lifespan.
• High-Speed & Acceleration: Designed for fast response and dynamic motion, making it suitable for demanding applications requiring rapid acceleration.
• Superior Precision: Delivers exceptional repeatability and accuracy, ideal for applications that require high-precision motion control.
• Customizable Performance: Stroke frequency and thrust parameters can be adjusted to meet specific operational needs, ensuring optimal performance.

Q3: Is the stroke frequency customizable?

Yes, the stroke frequency of the Magnetic Levitation Voice Coil Motor can be fully customized to align with specific application requirements. Customization options allow for optimized performance based on unique operational demands.
