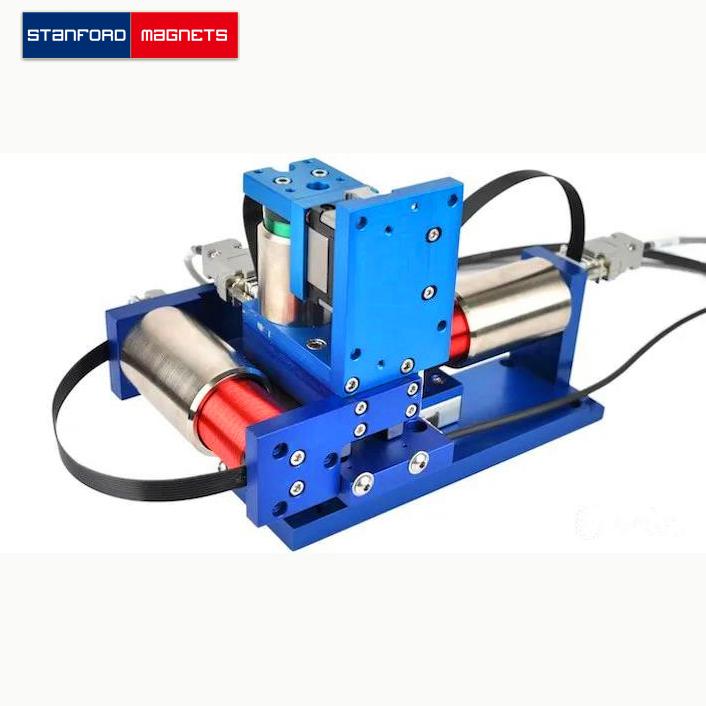

Magnetic Levitation Voice Coil Motor features a lightweight structure, rapid response, high-speed operation, and outstanding acceleration performance. Built with premium magnetic steel and carefully selected materials, it ensures stable thrust output and exceptional thrust capacity. The VCM platform, constructed from aerospace-grade aluminum, offers superior rigidity and durability. This cylindrical voice coil motor delivers a peak thrust of up to 950N, a continuous thrust of 607N, and a maximum stroke of 25mm. The stroke frequency can be customized to meet specific application requirements, and with an optimized encoder and rail system, it achieves repeatability accuracy of up to 0.5μm.
Related products:
SMON6146 Magnetic Levitation Voice Coil Motor TMPT-VC-0250-025-000-C
SMON6147 Magnetic Levitation Voice Coil Motor TMPT-VC-0300-050-000-C
SMON6150 Magnetic Levitation Voice Coil Motor TMPT-VC-0390-013-000-C
|
Rated Performance |
||
|
Total Stroke |
mm |
25 |
|
Peak Force |
N |
950.0 |
|
Continuous Force @ 120℃ |
N |
607 |
|
Peak Voltage |
V |
40 |
|
Peak Current |
A |
9.1 |
|
Motor Model |
- |
TMEC0950-025-000 |
|
Encoder Resolution |
um |
0.05/0.1/0.5/1 |
|
Repeatability Accuracy |
um |
0.5/1/5/10 |
|
Linearity |
um |
±2.5 |
|
Flatness |
um |
±2.5 |
|
Unloaded Moving Mass |
kg |
5.3 |
|
Unloaded Total Weight |
kg |
23.86 |
Optimized for optical applications, including autofocus mechanisms in cameras and microscopes, ensuring fast response and high precision for accurate positioning.
Designed for robotics and automation, delivering high-speed, high-acceleration motion for applications such as assembly, part handling, and precision movement tasks.
Ideal for robotic surgical systems, providing smooth and precise motion for surgical instruments. Also applied in hearing aids and therapeutic devices requiring fine, highly accurate movements.
Employed in satellite positioning systems and aerospace components, offering high thrust and stability for the precise alignment and positioning of satellite parts and equipment.
Q1: What is a Magnetic Levitation Voice Coil Motor?
A Magnetic Levitation Voice Coil Motor (VCM) is a high-precision motion system that utilizes magnetic levitation to eliminate direct contact between moving parts, minimizing friction and wear. This cutting-edge technology enables rapid response, high-speed operation, and exceptional acceleration, making it ideal for applications that demand smooth, accurate motion control.
Q2: What are the advantages of using a Magnetic Levitation Voice Coil Motor?
Ultra-Low Friction & Wear: Magnetic levitation eliminates physical contact, significantly reducing friction, enhancing efficiency, and extending lifespan.
High-Speed & Acceleration: Optimized for fast response and dynamic motion, making it perfect for high-performance applications requiring rapid acceleration.
Exceptional Precision: Offers high repeatability and accuracy, making it well-suited for precision motion control applications.
Customizable Stroke & Thrust: The stroke frequency and thrust parameters can be tailored to specific operational needs, ensuring optimal performance.
Q3: Can the stroke frequency be customized?
Yes, the stroke frequency of the Magnetic Levitation Voice Coil Motor can be fully customized to meet specific application requirements. Tailored customization options help optimize motor performance based on unique operational demands.
