Self-Cleaning Magnetic Grate Separator Introduction
Self-Cleaning Magnetic Grate Separator, also named Program Controlled Pneumatic Magnetic Separator, is designed for continuous production lines to remove iron fillings from dry flowing materials. The standard magnetic power is 8500Gs at standard working temperature. Custom Specification is available. According to customers’ requirements, Max. Working Temperature can reach 250℃, while Max. Magnetic Strength is 10000Gs.
Self-Cleaning Magnetic Grate Separator Specification

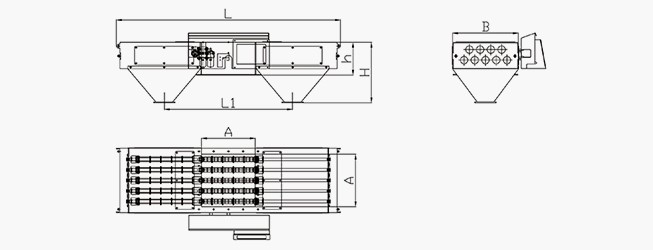

Figure 1-1 Self-cleaning Magnetic grate separator list for square inlet and outlet
| MODEL NO. |
Dimension(mm) |
No. of rods |
| A |
B |
h |
H |
L1 |
L |
1st layer |
2nd layer |
| S-PCPS40/40SN |
400 |
490 |
250 |
460 |
955 |
1669 |
4 |
5 |

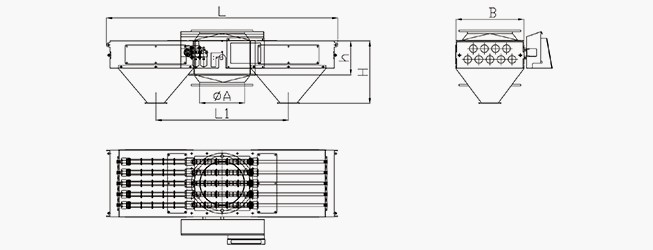

Figure 1-2 Self-cleaning Magnetic grate separator list for round inlet and outlet
| MODEL NO. |
Dimension(mm) |
No. of rods |
| ∅A |
B |
h |
H |
L1 |
L |
1st layer |
2nd layer |
| S-PCPS 300RN |
325 |
490 |
250 |
460 |
955 |
1669 |
4 |
5 |
Please Contact us for Custom Specification.
Self-Cleaning Magnetic Grate Separator Applications
Self-Cleaning Magnetic Grate Separator is used in diverse industries to remove magnetic and non-magnetic contaminants such as stray metal particles from processed materials. They help ensure product purity and prevent damage to downstream equipment.
