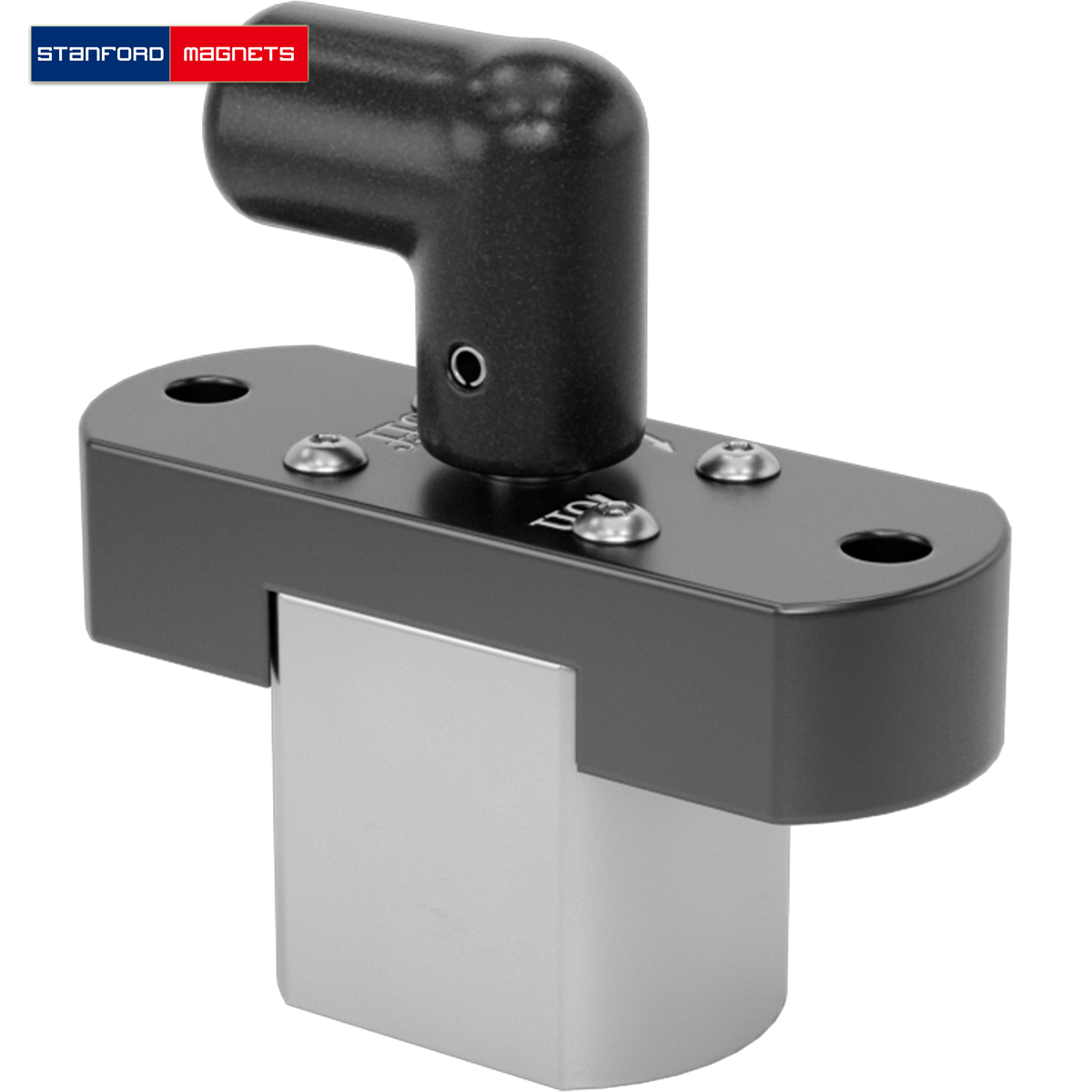

SMON3159 Easy On/Off Magnet with Mounting Flange Height 1 1/4" (Discontinued)

Product ID: SMON3159

{{el.prop}}: {{el.options}}


Easy On/Off Magnet with Mounting Flange Introduction

Turn the handle to switch these magnets on and off. Easy On/Off Magnet with Mounting Flanges are made of neodymium, a rare earth material, with nickel plating for protection in corrosive environments. A steel case concentrates and focuses the magnetic field. It also protects the magnetic material.

Easy On/Off Magnet with Mounting Flange Specifications

Shape Rectangle
Mount Type Unthreaded Hole
Width 1 1/4" 7/8"
Length 1 5/8" 1 1/8"
Height 1 1/4" 1 1/4"
Overall Height 2 1/4" 2 1/4"
Maximum Pull 150 lbs. 95 lbs.
Sets of Poles 1
Min. Temperature Not Rated
Maximum Temperature 180° F
Magnet Grade N45
Material Nickel-Plated Neodymium (Rare Earth)
Case Material Nickel-Plated Steel
Flange Material Aluminum
Hole Style Straight Straight
Number of Holes 2 2
Hole Diameter 3/16" 3/16"
Flange Length 2 5/8" 2 1/4"
Flange Width 1 1/4" 7/8"
Flange Height 1/2" 1/2"

Easy On/Off Magnet with Mounting Flange Applications

Easy On/Off Magnet with Mounting Flanges are special magnets used to aid in positioning and holding the welding material in place during the welding process. They are commonly used for welding metallic materials such as steel and iron. Easy On/Off Magnet with Mounting Flange Related products: Encased Ceramic Magnet (Steel Case) Encased Ceramic Magnets (Al Case) Encased Ceramic Magnets (Al Case)
Download a PDF Specification Sheet
