SMON3177 Insulation Style Magnetic Liquid Trap

Product ID: SMON3177

{{el.prop}}: {{el.options}}


Insulation Style Magnetic Liquid Trap Introduction

Insulation Style Magnetic Liquid Trap, also named Insulation Style Magnetic Liquid Filter, is designed for removing iron fillings from liquid or semi-liquid materials with different viscosity, to keep the purity of materials and protect the equipment. It features easy installation, separation, and cleaning through ferrule, bolt plate, flange or uneven head, etc. The ideal designed magnetic configuration ensures maximum magnetic effect without liquid flow impediment. Insulation Style Magnetic Liquid Trap has a jacket filled with heat insulation materials such as water and oil, to meet the insulation demands of liquid passing through the traps. It is an ideal choice to remove ferrous contamination from chocolate, jams, syrups, jams, etc.

Insulation Style Magnetic Liquid Trap Specification

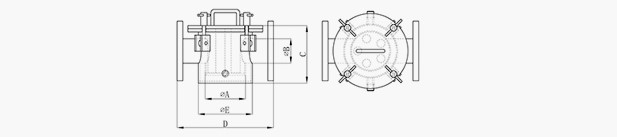

Insulation Style Magnetic Liquid Trap Figure 1-1 Insulation Style Magnetic Liquid Trap
MODEL NO. Dimension(mm) No. of rods Weight(Kg)
SWFLD125/25 125 168 32 185 300 5 21
SWFLD125/32 125 168 38 185 300 5 22
SWFLD125/40 125 168 45 185 300 5 23
SWFLD125/50 125 168 57 185 300 5 24
SWFLD125/65 125 168 76 185 300 5 25
SWFLD160/50 160 219 57 220 360 7 32.5
SWFLD160/65 160 219 76 220 360 7 34
SWFLD160/80 160 219 89 220 360 7 36
SWFLD160/100 160 219 108 220 360 7 37.5
  Please contact us for more specifications.

Insulation Style Magnetic Liquid Trap Applications

Insulation Style Magnetic Liquid Trap is commonly used in industries such as chemical, pharmaceutical, food processing, and wastewater treatment, where the removal of magnetic contaminants is necessary to ensure product quality, equipment protection, and process efficiency. Related products: Normal Magnetic Liquid Trap Magnetic Liquid Trap with Clamp Connection Normal Magnetic Drawer Rotary Magnetic Separators
Download a PDF Specification Sheet
