Magnetic Liquid Trap with Clamp Connection Introduction
Magnetic Liquid Trap with Clamp Connection is designed for removing iron fillings from liquid or semi-liquid materials with different viscosity, to keep materials purity and protect the equipment. It features a quick interface connector. It uses a rubber washer connected with a special shape of trap entry for good tightness, which saves installation time and costs.
Magnetic Liquid Trap with Clamp Connection Specification

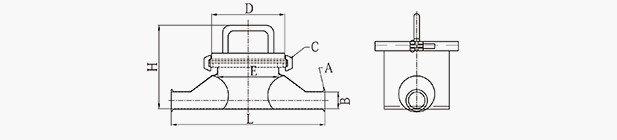

Figure 1-1 Magnetic Liquid Trap with Clamp Connection Series 2
| MODEL NO |
Dimension(mm) |
No. of rods |
| A |
B |
C |
D |
E |
L |
H |
| SW-OS15-25 |
1.5S |
35.7 |
4.5S |
130 |
114.3 |
330 |
180 |
5 |
| SW-OS20-25 |
2S |
47.8 |
4.5S |
130 |
114.3 |
330 |
180 |
5 |
| SW-OS25-25 |
2.5S |
59.5 |
5.5S |
155 |
139.8 |
420 |
205 |
7 |
| SW-OS30-25 |
3S |
72.3 |
5.5S |
155 |
139.8 |
420 |
205 |
7 |
| SW-OS35-25 |
3.5S |
85.1 |
5.5S |
155 |
139.8 |
420 |
205 |
7 |
Please contact us for more specifications.
Magnetic Liquid Trap with Clamp Connection Applications
Magnetic Liquid Trap with Clamp Connection is commonly used in filtration systems to remove magnetic and non-magnetic contaminants from liquids. They can effectively capture and separate undesirable particles such as rust, metal shavings, or other debris. This ensures the cleanliness and purity of the liquid, preventing damage to equipment or product quality issues.
