SMON3183 Rotary Grate Magnetic Separator | Stanford Magnets

SMON3183 Rotary Grate Magnetic Separator

Features:

  • Detachable design for easy cleaning and installation
  • A square or round pipeline flange of entry for easy installation

Standard Operating Temperature: ≤80℃

(As requirements, Max. Operating Temperature can reach 350℃)

Max. Magnetic Strength: 8000GS (Normal), 12000GS (Easy-cleaning)

Pipeline Material: 304 or 316L Stainless Steel

INQUIRY Can't Find The Size

Follow Us On


Description

Rotary Grate Magnetic Separator Introduction

Rotary Grate Magnetic Separator is widely used in the fields of building materials, chemicals, mining, food, refractory, and pharmacy. It is designed for removing iron fillings from powder or graininess materials, especially for those high-viscosity or poor fluidity materials that are prone to caking or bridging.

A square or round pipeline flange of entry is available according to each customer’s requirement for easy installation. The quantity of magnetic bars can be increased or reduced according to the different materials. Rotating Magnetic Bar can prevent the material from caking or bridging.

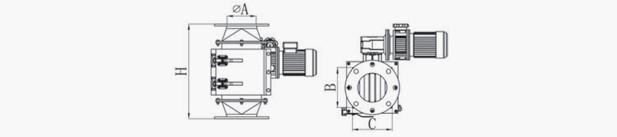

Rotary Grate Magnetic Separator Specification

Rotary Grate Magnetic Separator

MODEL NO. Dimension(mm) No. of rods Weight(Kg)
ΦA B C H KW
MRG150 150 205 208 450 0.25 7 43
MRG200 200 255 258 500 0.25 9 54
MRG250 250 305 308 550 0.25 11 62
MRG300 300 355 358 600 0.37 13 72
MRG350 350 405 408 650 0.37 15 84
MRG2020 205 208 270 0.25 7 29
MRG2525 255 258 320 0.25 9 38
MRG3030 305 308 370 0.25 11 43
MRG3535 355 358 420 0.37 13 52
MRG4040 405 408 450 0.37 15 62.5



Please Contact us for more specifications.



Rotary Grate Magnetic Separator Applications

Rotary Grate Magnetic Separator is widely used in the fields of building materials, chemicals, mining, food, refractory, and pharmacy. It is designed for removing iron fillings from powder or grainy materials, especially for those high-viscosity or poor fluidity materials that are prone to caking or bridging.
