SMON3158 Easy On/Off Magnet with Threaded Hole (Discontinued)

Product ID: SMON3158

{{el.prop}}: {{el.options}}

DESCRIPTION
TECHNICAL

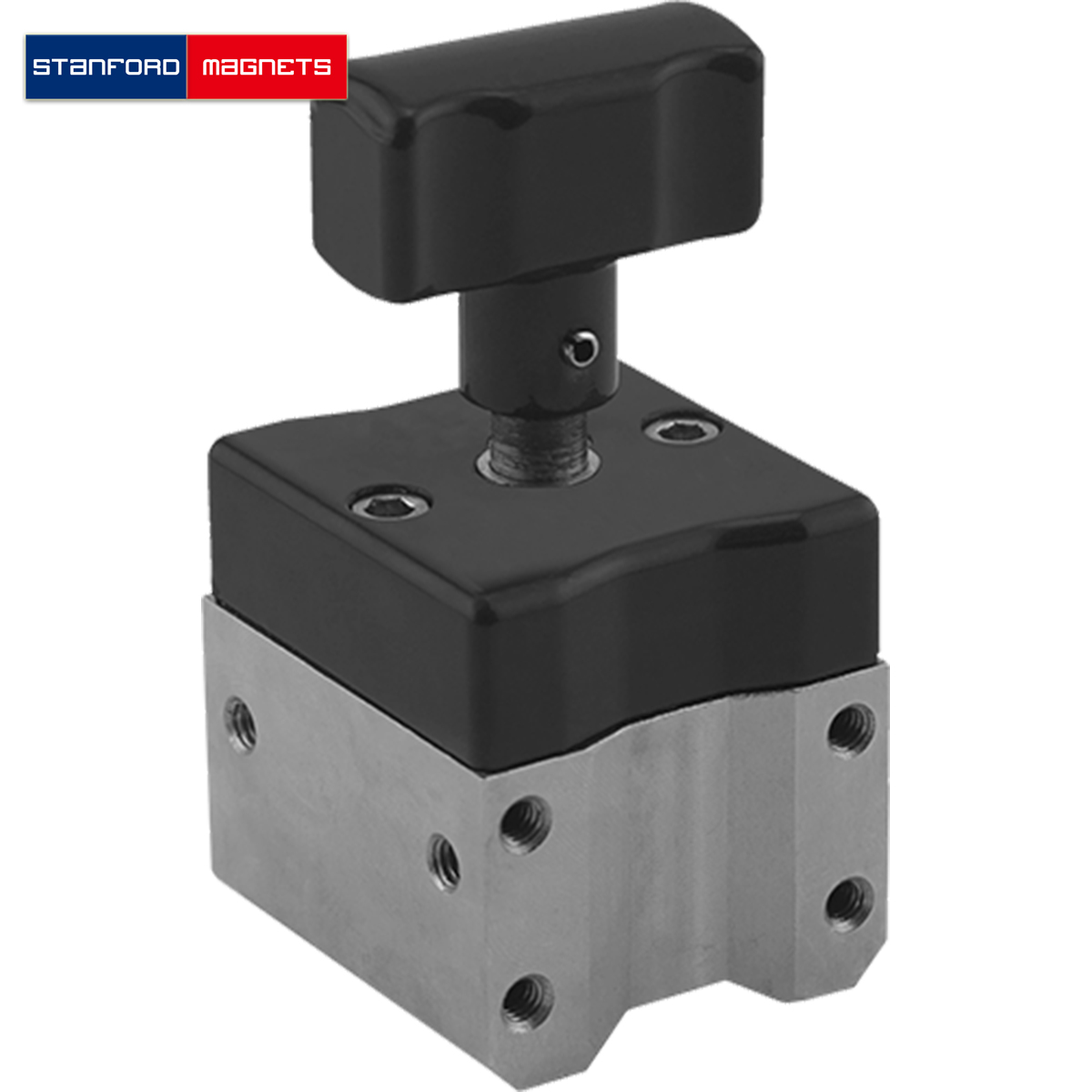

Easy On/Off Magnet with Threaded Hole Introduction

Turn the handle to switch these magnets on and off. Easy On/Off Magnet with Threaded Holes is made of neodymium, a rare earth material, with nickel plating for protection in corrosive environments. A steel case concentrates and focuses the magnetic field. It also protects the magnetic material.

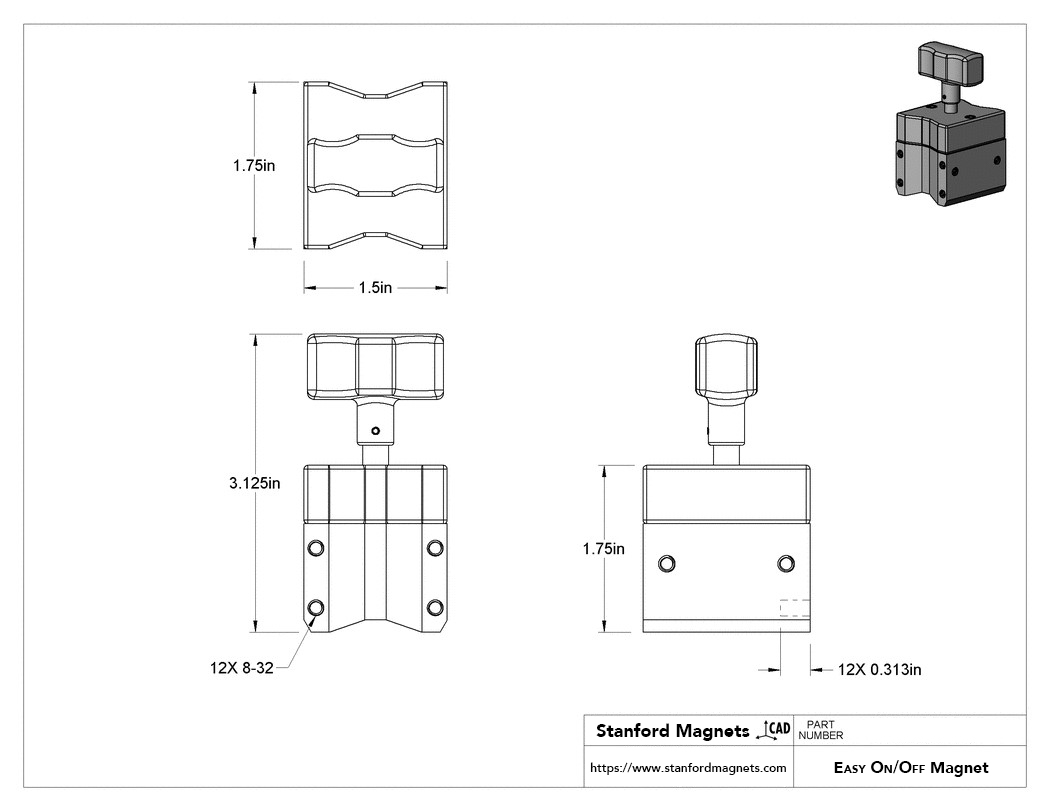

Easy On/Off Magnet with Threaded Hole Specifications

Shape Rectangle
Mount Type Threaded Hole
Width 1 1/2" 2 1/2" 4"
Length 1 3/4" 3" 4 1/4"
Height 1 3/4" 2 3/4" 3"
Overall Height 3 1/8" 4 7/8" 5 1/8"
Maximum Pull 150 lbs. 450 lbs. 1,000 lbs.
Sets of Poles 1
Min. Temperature -40° F
Maximum Temperature 175° F
Magnet Grade N35
Material Nickel-Plated Neodymium (Rare Earth)
Case Material Steel
Thread Size 8-32 1/4"-20 3/8"-16
Threading Partially Threaded
Thread Depth 5/16" 1/2" 5/8"
Mounting Hole Style Straight Straight Straight
Number of Mounting Holes 12 14 14
Maximum Energy Product, kJ/m³ 278 278 278
Flux Density 12,300 g


Easy On/Off Magnet with Threaded Hole Applications

Easy On/Off Magnet with Threaded Holes are special magnets used to aid in positioning and holding the welding material in place during the welding process. They are commonly used for welding metallic materials such as steel and iron. Easy On/Off Magnet with Threaded Hole Related products: Encased Ceramic Magnet (Steel Case) Encased Ceramic Magnets (Al Case) Encased Ceramic Magnets (Al Case)
