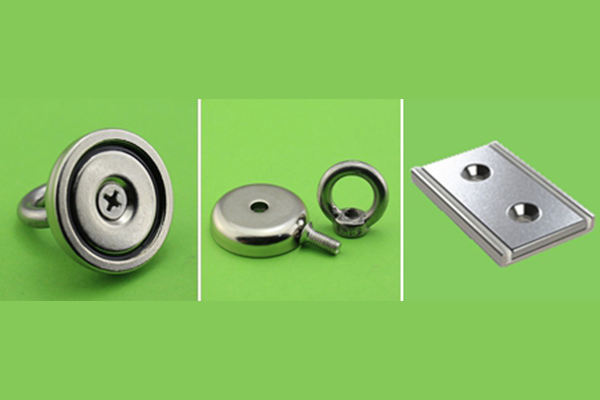

What Are the Types of Pot Magnets?

Thanks to its excellent properties, pot magnet has a wide range of applications in the industry and our everyday life. If you want to know what are the types of pot magnets, then you've come to the right place. In this article, we will briefly introduce the types of pot magnets. But before going any further, let's figure out what is a pot magnet first.

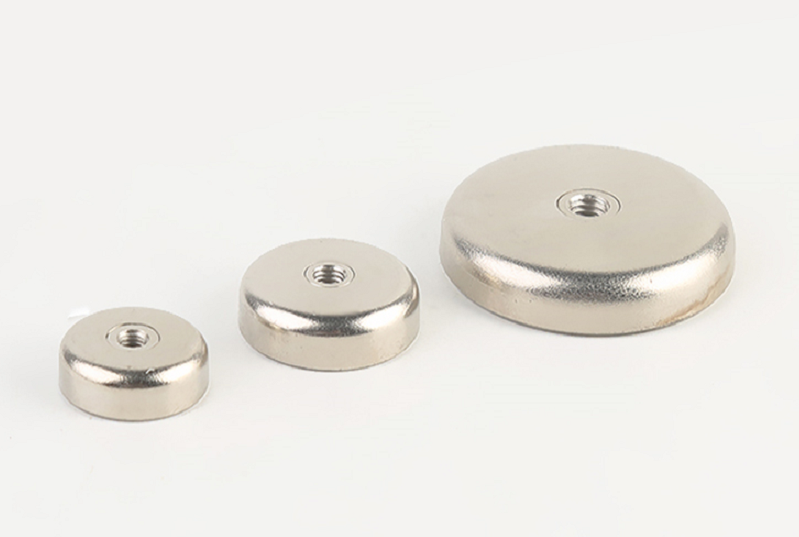

Pot Magnets

What is a pot magnet?

As we all know, a pot magnet is a magnet system that embeds powerful NdFeB magnets into a durable steel cup or channel. It's also named a cup magnet or mounting magnet, holding the magnet.

Many shapes have round bases, but if you need other shapes like the rectangular mounting magnet, we can make a custom cup magnet for you. The mounting magnet usually comes with a hole, especially a countersunk hole, this design will help for mounting with standard hardware (nuts and bolts), as well as various hooks.

Advantages of Pot Magnet

Compared with a single neodymium countersunk magnet, a pot magnet has more advantages:

1. More Magnetic Strength with Small Size: the steel housing concentrates magnetic force on one side and increases the holding power dramatically. 2. Cost Saving: due to the super-strong magnetic force, it can use fewer rare earth magnets and reduce the magnet cost. 3. Durability: neodymium magnets are very brittle, steel, or rubber covering can protect them. 4. Mounting Options: pot magnets can apply to many accessories, so they can work with different mounting options.

Recently, Stanford Magnets succeeded in redesigning a strong pot magnet assembly after two unsuccessful attempts. In the case of no change of magnet system size, it increases the magnetic pull force greatly.

Our Magnet Custom Service Includes: 1. Independence design 2. Cost reduction under the same pull force 3. The increase of pull force under the same size 4. Pull force from a few kilograms to several tons 5. Sample available and volume production

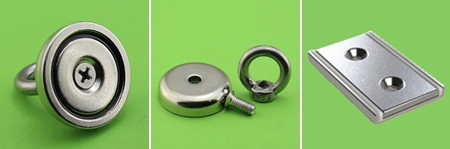

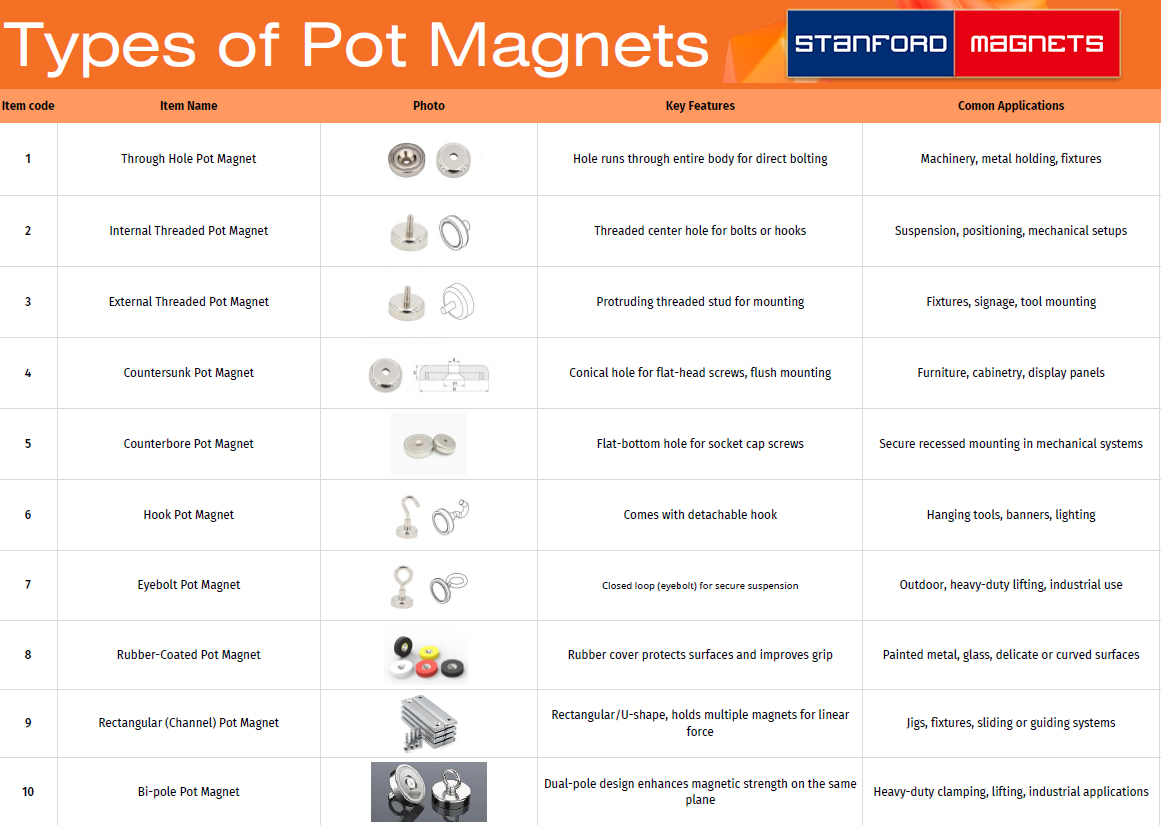

Type of Pot Magnets

These pot magnets have the following shapes:

Applications of Pot Magnets

It's a popular magnetic assembly for home and industrial use as hanging and wall mounting applications. 1. Fishing for Lost Objects 2. Hanging Items 3. Mounting Article 4. Hobby & Leisure

Conclusion

Thank you for reading our article and we hope it can help you have a better understanding of the types, applications, and advantages of the pot magnets. If you want to know more about the pot magnet, you can visit Stanford Magnets for more information.
