All about N42 Neodymium Magnets
Introduction
N42 neodymium magnets are among the most popular choices for various applications, thanks to their excellent balance of strength, affordability, and temperature resistance.
What Does N42 Neodymium Magnet Mean? Why Are N42 Neodymium Magnets So Popular? This article is going to answer these questions. Hope that you can have a better understanding of the meaning, popularity, and common uses of N42 Neodymium Magnets.
What Does N42 Neodymium Magnet Mean?

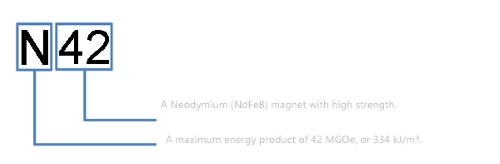

The term "N42" refers to a specific grade of neodymium magnet, signifying its magnetic strength. The "N" represents neodymium, the primary material used in the magnet, while "42" indicates the maximum energy product of the magnet, measured in MegaGauss-Oersteds (MGOe). In practical terms, this means N42 magnets have a maximum energy product of 42 MGOe, classifying them as high-performance magnets with strong magnetic force.
Some variations, like N42H, include an additional designation—in this case, "H," which stands for high resistance to temperature. N42H magnets can operate at temperatures up to 120°C, making them suitable for applications requiring enhanced thermal stability.
Further reading: Magnet Grades: A Deep Dive into Pull Force, Gauss, and N Numbers
Why Are N42 Neodymium Magnets So Popular?
N42 neodymium magnets have gained widespread popularity for several reasons:
--Perfect Balance of Cost and Performance
N42 magnets strike an excellent balance between affordability and strength. For instance, they can achieve the same magnetic force as an N50 magnet by slightly increasing their size or match the performance of an N38 magnet with a smaller size. This versatility makes them highly cost-effective.
--Superior Temperature Resistance
Compared to higher grades like N50, N52, and N55, N42 magnets offer better resistance to temperature variations. For applications demanding even higher thermal performance, the N42SH variant is available, which operates at elevated temperatures.
--Ideal for Beginners
N42 magnets are an excellent choice for newcomers starting projects requiring neodymium magnets. Their availability and balance of properties make them ideal for testing and prototyping.
--Wide Availability
N42 magnets are readily available in various online and offline markets, ensuring they’re easily accessible for a range of applications.
Is N52 Stronger than N42?
Yes, N52 magnets are stronger than N42 magnets, making them the highest grade available for neodymium magnets. N52 magnets are about 20% stronger than N42 magnets, offering unparalleled magnetic force. However, this enhanced strength comes with a significantly higher price. For instance, while N42 magnets are economical and offer excellent performance, the cost of N52 magnets can be nearly double.
The choice between N42 and N52 magnets depends on the specific requirements of the application. For most uses, the performance of N42 magnets is sufficient, making them a popular choice for those prioritizing cost efficiency without sacrificing quality.
Here’s a detailed comparison table of the properties of N52 magnets versus N42 magnets:
|
Property |
N42 Magnets |
N52 Magnets |
|
Grade |
N42 |
N52 |
|
Maximum Energy Product |
42 MGOe |
52 MGOe |
|
Residual Flux Density (BrB_r) |
13,200 Gauss (1.32 Tesla) |
14,800 Gauss (1.48 Tesla) |
|
Coercive Force (HcH_c) |
11,000 Oersteds |
11,500 Oersteds |
|
Intrinsic Coercivity (HciH_{ci}) |
≥ 12,000 Oersteds |
≥ 12,000 Oersteds |
|
Maximum Operating Temp. |
80℃ (up to 120℃ for N42H) |
60℃ (up to 80℃ for N52H) |
|
Magnet Density |
7.5 g/cm³ |
7.5 g/cm³ |
|
Strength |
High |
~20% higher than N42 |
|
Price |
Economical |
Significantly higher (~2x of N42) |
|
Applications |
Versatile; consumer electronics, motors, renewable energy, etc. |
Critical high-strength applications; advanced electronics, aerospace, etc. |
Further reading: N35 VS N52 Magnets
Common Uses for N42 Neodymium Magnets
The versatility of N42 magnets makes them suitable for numerous applications across various industries:
- Consumer Electronics
N42 magnets are widely used in smartphones, headphones, and computer hard drives due to their compact size and strong magnetic force.
- Electric Motors and Generators
These magnets play a critical role in the operation of electric motors and generators, where high magnetic strength and durability are essential.
- Magnetic Fasteners and Closures
N42 magnets are commonly employed in magnetic clasps for bags, jewelry, and doors, providing a secure and reliable fastening mechanism.
- Medical Devices
Applications include MRI machines and other diagnostic equipment, where high precision and strength are required.
- Renewable Energy
In wind turbines, N42 magnets are used in generators to convert kinetic energy into electricity efficiently.
- Educational and DIY Projects
Their affordability and strength make N42 magnets a favorite for educational purposes and DIY experiments.
- Automotive Industry
From sensors to electric vehicle motors, N42 magnets support various automotive applications.
Choosing a Neodymium Magnet Manufacturer
When sourcing N42 neodymium magnets, it is essential to work with a reliable manufacturer. Look for manufacturers offering:
- High-Quality Products: Ensure the magnets meet industry standards and offer consistent performance.
- Customization: The ability to customize magnet shapes, sizes, and coatings to suit specific applications.
- Technical Support: Guidance in selecting the right magnet grade for your project.
- Competitive Pricing: Transparent pricing and efficient delivery to optimize cost-efficiency.

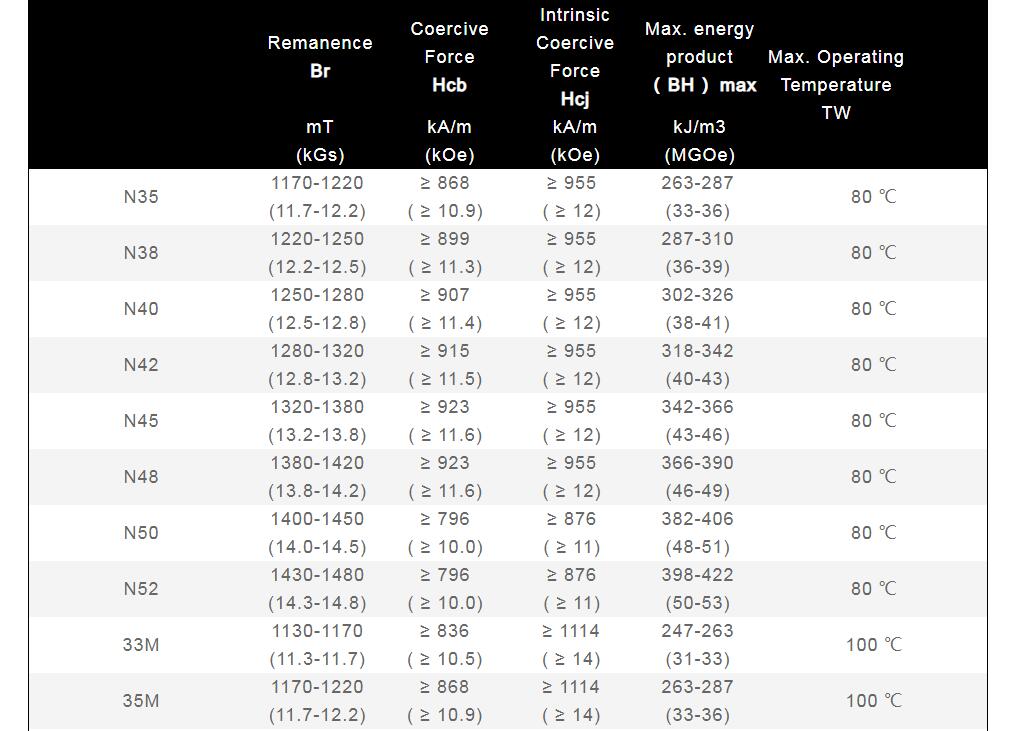

Stanford Magnets has over 20 years of experience in supplying high-quality Neodymium magnets. Neodymium magnets are available in various grades to meet diverse industrial needs. These grades typically range from 33 MGOe to 52 MGOe, enabling the optimization of cost, performance, and temperature resistance for specific applications.
Conclusion
N42 neodymium magnets represent a perfect blend of performance, affordability, and versatility. Their high magnetic strength, superior temperature resistance, and widespread availability make them a popular choice across industries. While N52 magnets may offer greater strength, the cost-effectiveness of N42 magnets makes them an ideal choice for most applications.
