The Best Neodymium Magnets: A Comprehensive Guide

Neodymium magnets, more commonly referred to as NdFeB magnets, are the strongest permanent magnets currently on the market. They have become indispensable parts in various industries, including automotive, electronics, medical devices, and renewable energy. Each has various strengths, temperature stability, and durability; the "best" magnet will be determined by the different application requirements.

What Are Neodymium Magnets?

Neodymium magnets belong to a family of rare-earth magnets, which also includes samarium-cobalt magnets. Neodymium is a rare element, found in the Earth's crust, which, combined with iron and boron, forms an alloy with the capability of developing a very strong magnetic field.

Neodymium magnets are permanent magnets, which mean that they remain magnetic without the necessity of continual external power. They can have exceptionally high magnetic flux densities, making them perfect for applications that need small but strong magnets. The strength of a neodymium magnet is expressed via its grade-a number and letter designation, such as N42, N52, or N35. These grades designate the maximum energy product of the magnet, in which higher grades mean stronger magnets.

What Makes Neodymium Magnets The Best?

The main reason neodymium magnets are considered the best is due to their tremendous strength. Compared to other permanent magnets, such as ceramic or alnico, neodymium magnets are much stronger for their size. This strength comes from something called the energy product, which is measured in Mega Gauss Oersteds or MGOe and is essentially a way to determine how much magnetic energy density a magnet can achieve.

• High Magnetic Strength: Neodymium magnets are able to create very strong magnetic fields. A N52 magnet can produce a field of up to 16.3 kG (kilogauss) in a given space, making them about 10 times stronger than a ceramic magnet of the same size.

• Size vs. Power: Neodymium magnets can be smaller and lighter for their power because of their enormous strength-to-weight ratio, yet still possess the power required in more demanding applications. This fact makes them the material of choice in compact designs where space is limited but performance is vital to the application.

• Durability: Although neodymium magnets are very brittle and might chip or crack quite easily, they are extremely stable in respect to keeping their magnetic strength. If properly coated - such as with nickel, gold, or epoxy to prevent corrosion and moisture - they are reliable for a wide range of industrial and environmental conditions.

Grades of Neodymium Magnets: Which One Is Best for You?

Neodymium magnets are available in different grades, the understanding of which is imperative in ascertaining which one would suit your requirements best. The number in a grade designation (N35, N42, N52) refers to the magnetic strength of the magnet, or more accurately its maximum energy product in MGOe. The higher the number, the stronger the magnet.

Common Neodymium Magnet Grades:

1.     N35: This is the most basic grade of neodymium magnet, offering a good balance between strength and cost. They are largely applied in consumer electronics, small motors, and in magnetic tools.

2. N42: This is a general-purpose grade featuring moderate strength. These magnets offer an excellent balance between flux and cost, making them suitable for industrial uses from magnetic separators to speakers and even medical applications.

3. N52: Among the strongest grades available, N52 magnets have the highest energy product, making them ideal for high-performance applications such as high-speed motors, wind turbines, magnetic levitation systems, and advanced scientific instruments.

Related reading: Everything You Should Know About N42 Neodymium Magnets

Choosing the Right Grade:

• N35/N38 Lower Grades: Suitable for less demanding applications, involving small motors, consumer gadgets, and other applications of a basic holding or lifting nature.

Mid-range Grades (N40, N42): Perfect for industrial equipment, fishing magnets, magnetic separators, audio systems, and medical devices that need a steady balance between power and cost.

• Higher Grades: N50, N52 - used when applications necessitate high strength in a very small area, which is the case with high-performance motors, aerospace equipment, wind turbines, and MRI machines. The general feeling is that the N52 grade is usually preferred for powerful and compact applications requiring extreme performance.

What to Consider When Picking the Best Neodymium Magnet

While the strength of the magnet is the most important factor, there are indeed other considerations when choosing the ideal neodymium magnet for your application.

1. Size and Shape

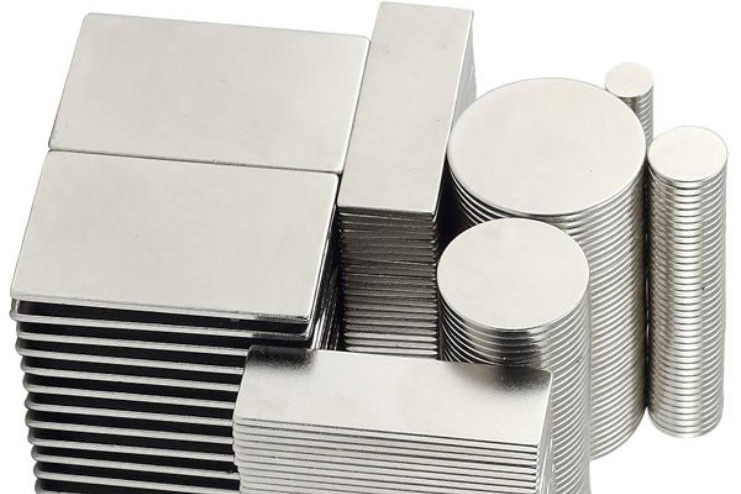

The size and shape of the magnet are critical to its performance. Neodymium magnets can be made into various shapes, including discs, blocks, rings, cylinders, and special shapes. The shape provides a different distribution of the magnetic field and may alter the performance of the magnet in specific applications.

• Ring Magnets serve well for applications involving rotation, such as motors or turbines, where they can be magnetized along their inner and outer diameters for maximum efficiency.

• Disc Magnets and Cylinder Magnets are generally used in small motors, sensors, and magnetic fasteners.

2. Temperature Stability

Neodymium magnets have temperature limits, and operating above the maximum temperature can result in a permanent loss of magnetism. Most neodymium magnets are temperature-rated up to 80–100°C (176–212°F), but if you will be using magnets in high-temperature applications, consider high-temperature versions that are specially treated to hold up to as high as 200°C (392°F) or more.

3. Corrosion Resistance

Neodymium magnets can corrode if they are exposed to water and harsh environments. Most neodymium magnets are therefore protected with a protective coating, such as nickel, epoxy, or gold, which prevents oxidation. If you plan on using the magnets in outdoor or moist environments, take care that they are coated-or select a coating that best suits your specific environment.

4. Magnetic Field Requirements

The most important factor when selecting a magnet is the magnetic field strength. Applications involving compact spaces that require very strong fields will best utilize higher-grade magnets, such as N52. Applications that have lower demands and do not need extreme magnetic fields can make very good use of lower grades-such as N35 or N38-that provide substantial power without the added cost.

Applications of Neodymium Magnets

Neodymium magnets are used in a wide variety of industries, including:

• Automotive: In the electric motors of EVs, hybrid cars, and actuators.
• Renewable Energy: Used in wind turbines and the motors of solar panels.
• Medical devices that include MRI machines, prosthetics, and medical instrumentation.
• Electronics: in speakers, headphones, hard drives, and sensors
• Industrial Equipment: Magnetic separators, lifting magnets, magnetic chucks, and motors.

Which Neodymium Magnet Is the Best?

The best neodymium magnet is a matter of what your application specifically demands. N52 magnets are the strongest and most efficient for high-end performance in compact spaces. For common applications where cost and strength must be balanced, N42 magnets offer the best middle ground. When scaling smaller or working in less demanding conditions, N35 magnets are a cost-effective solution, adequate for many uses.

Ultimately, the best choice will depend upon your needs concerning magnetic strength, size, temperature resistance, and cost efficiency. Knowing these components will ensure you pick the best neodymium magnet for your application, achieving optimal performance, durability, and cost-effectiveness. For more information, please check Stanford Magnets.
